Architecture & Method

01The pipeline at a glance

One forward pass, no gradients, no second pass — a marginal cost layered on the computation the model already runs, which is what makes it feasible live on a phone.

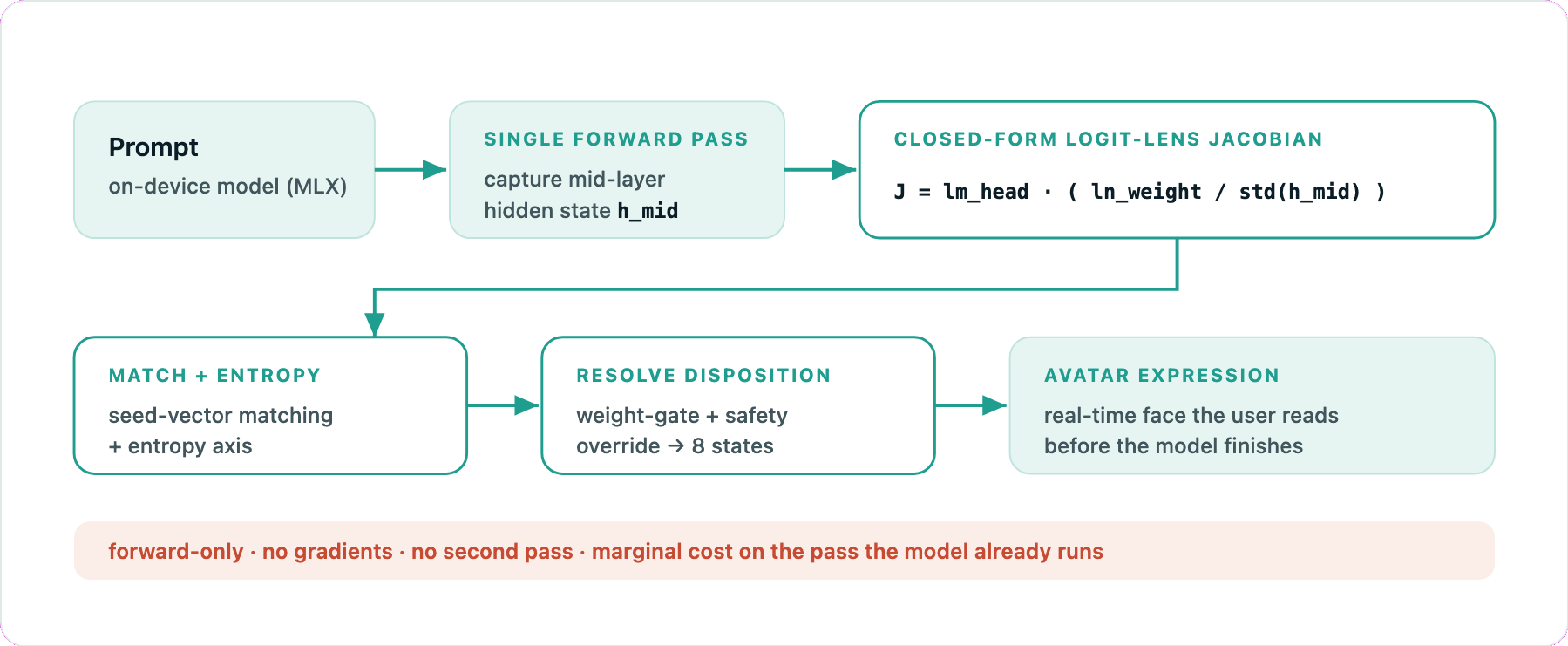

Fig 1 — The J-Space read: prompt → single forward pass → closed-form logit-lens Jacobian → seed-vector match + entropy → resolved disposition → avatar.

What the diagram means

A few terms, in plain language. The hidden state h_mid ("mid") is the model's internal work-in-progress — the vector of activations at a middle layer, after it has read the prompt but before it commits to an output. The head weight (lm_head, the unembedding) is the model's final linear layer: the very matrix it uses to turn a hidden vector into a score for every word in its vocabulary. And a Jacobian is simply a table of sensitivities — how much each output changes when you nudge each input. Here it answers one question: as the hidden state shifts, which words does the model lean toward? That lean is what we call its disposition. Canis computes a cheap, closed-form version of this Jacobian directly from the head weight and the hidden state's own scale — so it can be read in a single step, on the phone, without ever running the model twice.

02On-device architecture

Everything — the model, the disposition engine, and personal RAG — runs inside the phone. No cloud round-trips; documents never leave the device.

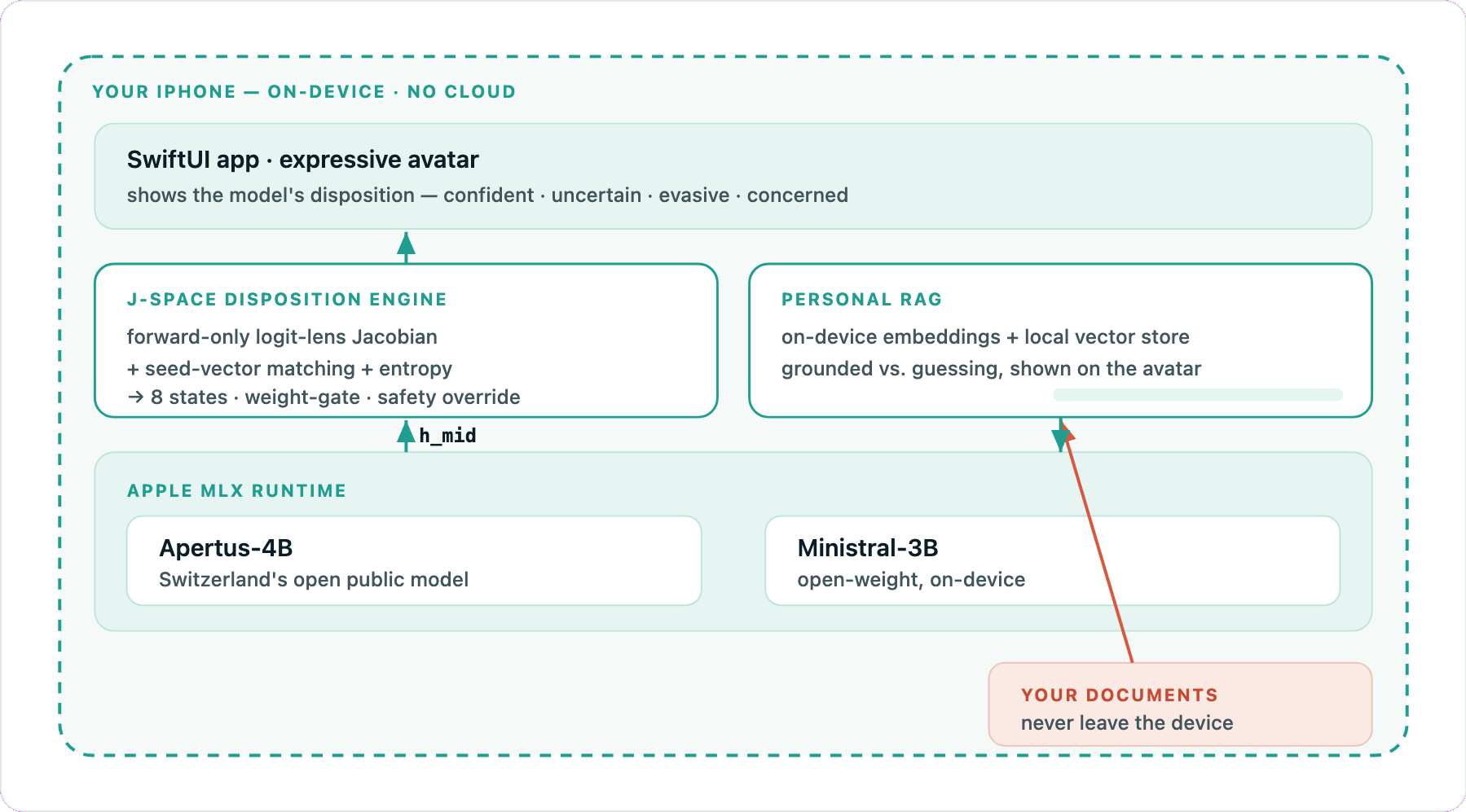

Fig 2 — The stack: SwiftUI app + avatar, the J-Space disposition engine, personal RAG, and open-weight models (Apertus-4B, Ministral-3B) on Apple MLX.

Why these two models

Running a model on the phone is a tight budget, and the choice is dominated by three constraints. Size & memory — the weights must fit in the iPhone's unified memory alongside the OS and the app; at 4-bit quantization a 3–4B-parameter model lands around 2–3 GB, whereas 7B+ models crowd out memory and risk being killed by the system. Thermal — sustained generation heats a passively-cooled SoC, so a smaller model that holds a high tokens-per-second is what keeps the avatar feeling live without thermal throttling. Openness & sovereignty — both ship open weights, so everything stays on-device with no cloud fallback. We chose Apertus-4B (Switzerland's public model) as the primary backend for its openness and Swiss provenance, and Ministral-3B as an even lighter second option that also lets us compare disposition behaviour across model families. The principle: the smallest models that are good enough to be useful — digital sufficiency, made in hardware.

03How you use it

Two independent flows: build and (optionally) share a knowledge pack, and ask questions while the avatar reads the model's honesty. An active pack grounds the answer.

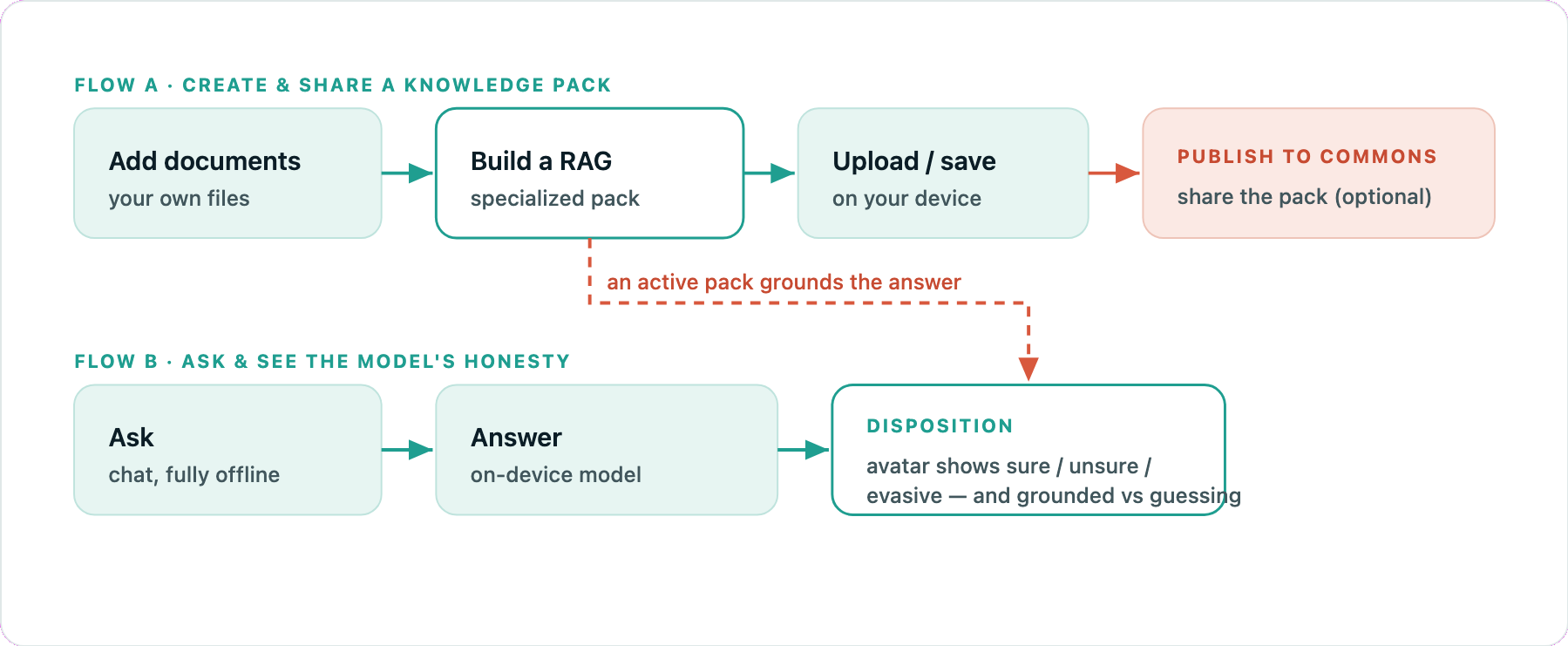

Fig 3 — Flow A: add documents → build a RAG → save → publish. Flow B: ask → answer → disposition (grounded vs. guessing).

Two ways in

Out of the box (Flow B) is the simplest loop: you ask, the model answers on-device, and you observe its disposition — is it confident, unsure, evasive? That alone is an honest read on a general-purpose model. Creation (Flow A) is for when you are the expert. You bring a domain you know — a manual, a course, a body of facts — and build a personal knowledge pack (a RAG). Now the disposition does double duty: as you ask, you can verify the answers against your own ground truth, and the avatar shows when a reply is grounded in your material versus guessed. The expert stays in the loop, and the model's honesty becomes checkable against a domain you can actually judge.

04The method, in detail

How Canis turns a transformer's mid-layer activations into a legible, honest disposition signal — cheaply enough to run live on Apple Silicon.

4.1 · Reading disposition from the hidden state

At generation time, a transformer produces a mid-layer residual-stream hidden state h_ℓ. The logit lens (nostalgebraist, 2020) observed that projecting an intermediate hidden state through the model's own unembedding already yields an interpretable next-token distribution — the model is, in effect, "leaning toward" certain outputs well before the final layer. Canis reads that lean: the local relationship between the mid-layer state and the vocabulary logits is a Jacobian,

Rather than compute this with autodiff (too heavy for a phone), Canis uses a closed-form logit-lens approximation: the final RMSNorm followed by the unembedding is (locally) linear in h, so the Jacobian is well-approximated by the unembedding matrix rescaled by the norm gain and the state's RMS:

4.2 · The forward-only adaptation

Because the approximation needs no gradients, the disposition is read with a single matrix multiplication against the hidden state the model already computed — not a second forward pass. This is the key de-risking insight for on-device operation: the cost is marginal relative to generation itself.

4.3 · Seed-vector matching

Keyword matching on the output text is brittle. Instead, Canis pre-projects a set of anchor seed phrases for each disposition into J-space and stores their mean as a concept vector v_d. The live readout is scored by cosine similarity against each disposition:

4.4 · The entropy axis

J-space projections can be noisy on a given turn. As an independent, robust gauge, Canis also reads the next-token softmax Shannon entropy — high entropy is genuine hesitation regardless of the concept read:

4.5 · Resolution & the safety axis

The final disposition is resolved by combining the seed-vector scores with the entropy reading under a weight-gate (a minimum winning margin), so a weak or ambiguous signal defaults to a neutral idle rather than over-claiming. Three dispositions — concern, reluctant, mischief — form a safety axis: when their signal is present it is allowed to override, so hedging, refusal, and evasive phrasing surface visibly. Canis deliberately detects evasion at the lexical/representational level (Tier 1) and does not claim to detect intentional scheming (Tier 2) — a boundary we keep explicit to preserve scientific credibility.

Eight dispositions are classified: idle, confident, uncertain, curious, concern, reluctant, warm, mischief. Each maps to the avatar's ears, brows, gaze, mouth, and micro-gestures — the read a person makes at a glance.

05References & lineage

Canis builds on an established line of work reading a transformer's latent predictions from its intermediate states.

• The logit lens. nostalgebraist (2020), "interpreting GPT: the logit lens." The observation that intermediate hidden states, unembedded, already predict the next token.
• Eliciting Latent Predictions with the Tuned Lens. Belrose, Furman, Smith, Halawi, Ostrovsky, McKinney, Biderman, Steinhardt (2023). arXiv:2303.08112 — a refined, learned logit lens; motivates reading disposition from mid-layers.
• Verbalizable Representations Form a Global Workspace in Language Models. Gurnee, Sofroniew, Pearce, … Lindsey et al. — Anthropic (July 2026). Introduces the Jacobian Lens and the "J-space" of representations a model is poised to report — the technique Canis operationalizes on-device. transformer-circuits.pub/2026/workspace
• Neuronpedia. Open interpretability platform for exploring, visualizing and steering model internals — including a hosted Jacobian Lens over global-workspace dynamics. Covers large, SAE-instrumented models; Canis carries the same lineage forward-only and on-device to small open models like Apertus and Ministral. neuronpedia.org
• Personal RAG vs. LoRA — our finding. Flotilla open model & evaluation on Hugging Face. In our own experiments, retrieval-augmented generation reached correct domain answers faster and more cheaply than LoRA fine-tuning — which is why Canis grounds on a user's own documents rather than fine-tuning a model per user.
• Apertus. Switzerland's open, public large language model. Canis's primary on-device backend; a sovereign, open foundation.
• Apple MLX. Array framework for machine learning on Apple silicon. The on-device runtime for both the model and the disposition probe.
